Steam Expansion Joints

Bellows Hellas / Steam Expansion Joints

Multiply Expansion Joints capable of withstanding pressures of up to 20 BAR. They consist of 4 to 6 metal sheets with a thickness of 0.4mm or 0.6mm depending on the size of the Joint and the required working pressure. They are manufactured with stainless steel SUS-316L and their size ranges from DN100A up to DN400A. They can be fitted with a wide range of flanges, standard or custom made, with the option of being fixed or floating.

Steam Expansion Joint Bellows Hellas

Steam Expansion Joints Main Characteristics

  • Working pressure: Up to 20 BAR

  • Material: SUS-316L

  • Available Size Range: DN65A – DN 400A

  • Flange Type:

    • Standard or Custom Made
    • Fixed or Rotating

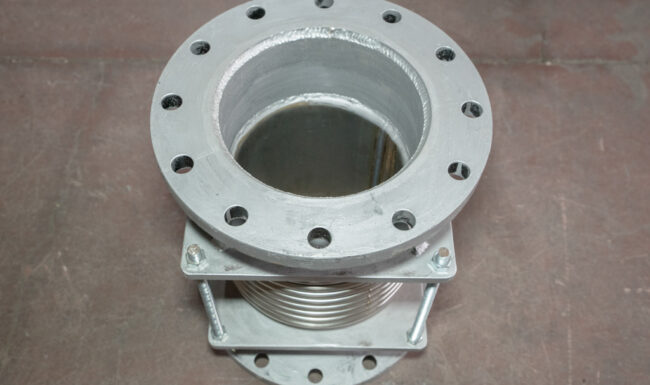

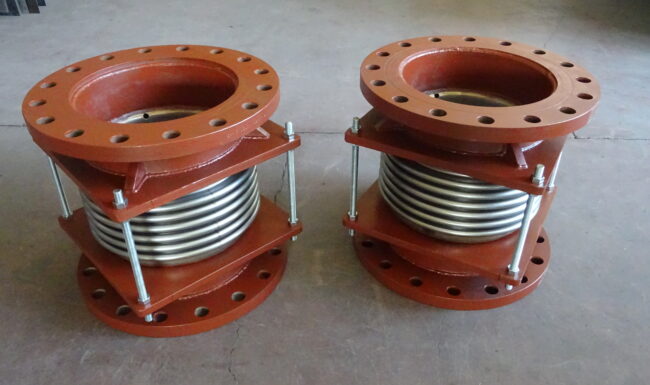

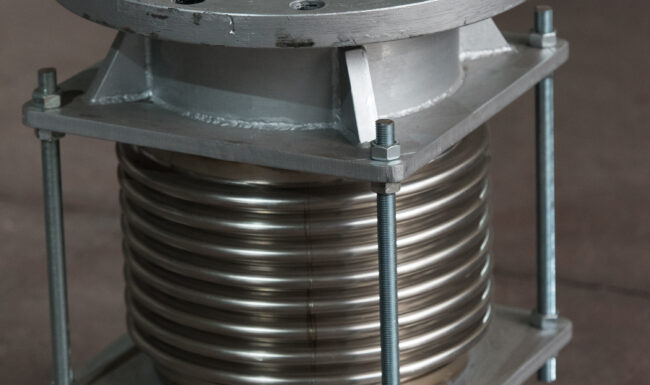

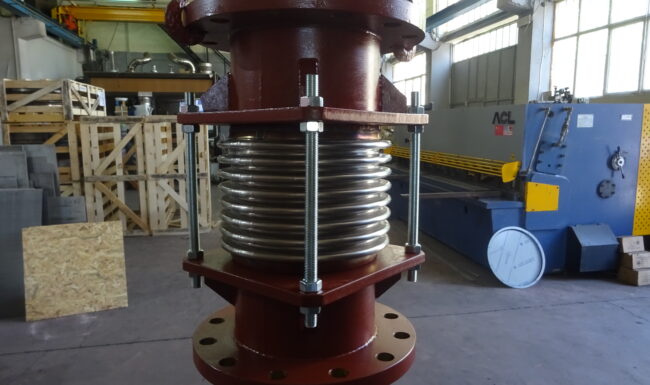

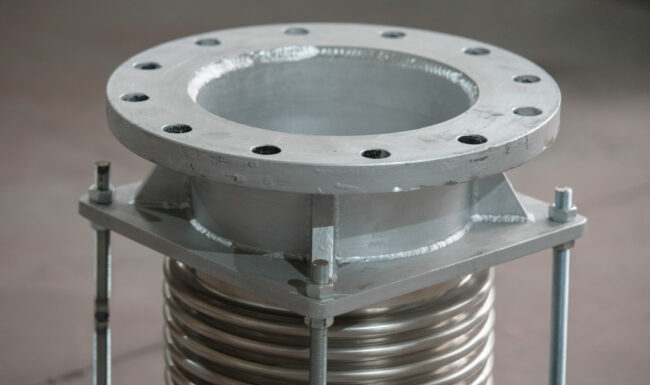

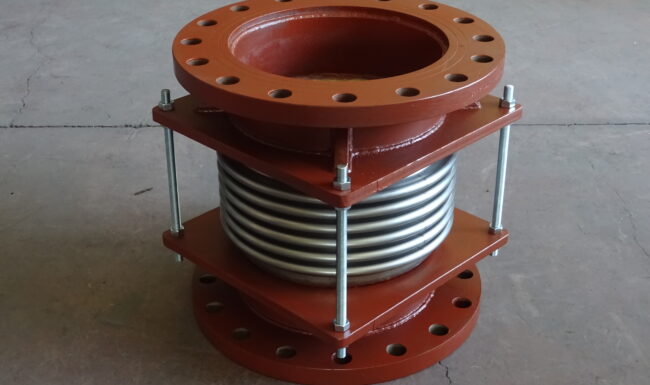

Steam Expansion Joints Photo Gallery
